Plot TDT Power Sensitivity to Locus Heterogeneity

Plot TDT power vs locus heterogeneity rate (1 - pi), holding misclassification fixed.

plot_tdt_power_locus_heterogeneity(
  pd,
  prev,
  R1,
  R2,
  alpha = 0.05,
  delta_prime = 1,
  N,
  heter_seq = seq(0, 0.5, by = 0.05),
  misclass_fixed = 0,
  title = "TDT power vs heterogeneity (1 - pi)"
)

Arguments

pd

Disease allele frequency.

prev

Disease prevalence.

R1

Genotype relative risk for heterozygotes.

R2

Genotype relative risk for risk homozygotes.

alpha

Significance level.

delta_prime

Linkage disequilibrium scaling parameter.

N

Number of affected trios.

heter_seq

Numeric vector. Sequence of heterogeneity rates.

misclass_fixed

Numeric. Misclassification rate held fixed (default 0). (Other params same meaning as in plot_tdt_power_phenotype_misclassification.)

title

Plot title.

Value

A ggplot object, returned invisibly after it is printed.

Details

The x-axis is the heterogeneous trio fraction \(1-\pi\); the homogeneous/linked fraction is \(\pi\). The y-axis is heterogeneity-scenario power from tdt_power(). N, misclass_fixed, and all genetic-model parameters remain fixed while heter_seq is swept.

See also

tdt_power, plot_tdt_power_phenotype_misclassification, and plot_tdt_power.

Examples

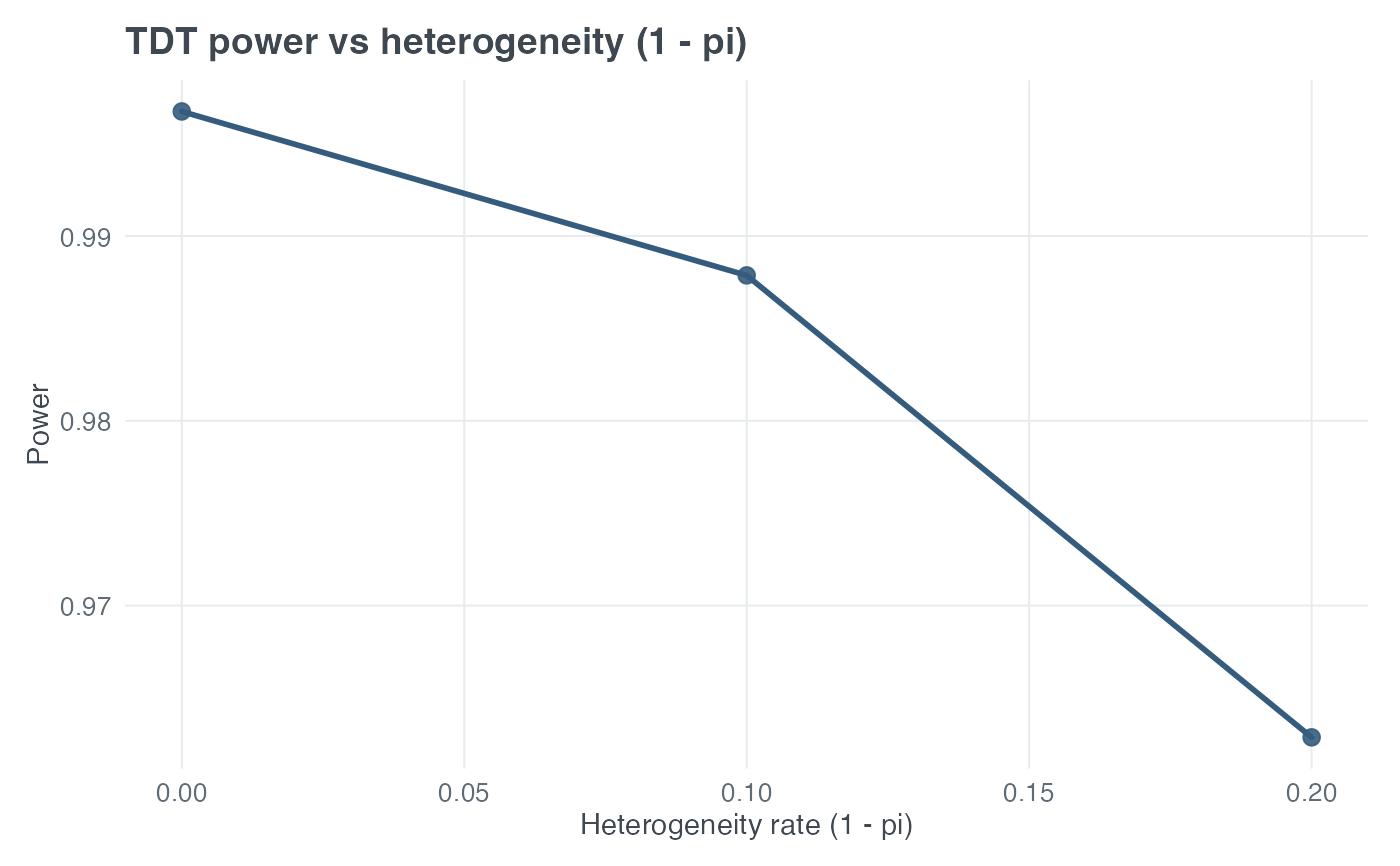

# Power sensitivity to locus heterogeneity
plot_tdt_power_locus_heterogeneity(
  N    = 600,
  pd   = 0.30,
  prev = 0.05,
  R1   = 1.5,
  R2   = 2.25,
  heter_seq      = c(0, 0.1, 0.2),
  misclass_fixed = 0
)
