Plot Threshold-Selected Genotype Chi-Square Minimum Sample Size

Sweeps one model, selection, or design parameter and repeatedly calls qtl_threshold_chisq_mssn().

plot_qtl_threshold_chisq_mssn(
  x_var,
  x_values,
  sample_size = c("total", "case", "control"),
  title = NULL,
  x_label = NULL,
  y_label = NULL,
  return_data = FALSE,
  ...
)

Arguments

x_var

Parameter to vary. One of "power", "alpha", "qtl_var", "tau", "pd", "x_upper", "x_lower", or "k".

x_values

Numeric vector of at least two finite x-axis values.

sample_size

Selected-sample result to plot: "total", "case", or "control". Population screening counts are deliberately excluded because they are not statistical MSSN values.

title

Optional plot-title override.

x_label

Optional x-axis-label override.

y_label

Optional y-axis-label override.

return_data

Logical. If TRUE, returns plotting data rather than a ggplot object.

...

Fixed arguments passed to qtl_threshold_chisq_mssn().

Value

A ggplot object, or a data frame with the swept parameter and the selected MSSN result if return_data = TRUE.

Details

The x-axis is x_values for the selected model, selection, or design parameter. The y-axis is the selected case, control, or total MSSN requested by sample_size; it is not a source-population screening count. Other arguments remain fixed while x_var is swept.

See also

qtl_threshold_chisq_mssn, plot_qtl_threshold_chisq_power.

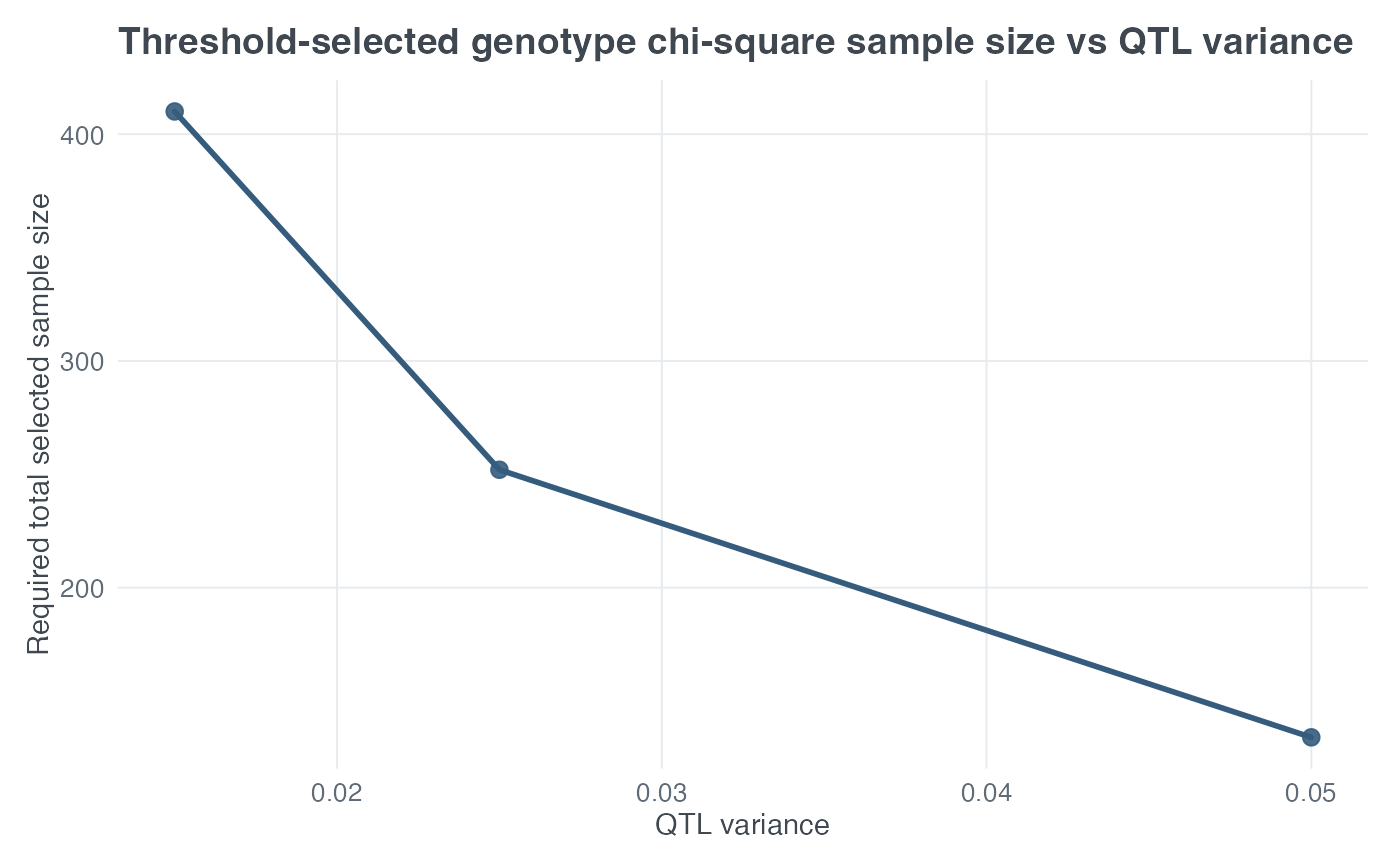

Examples

plot_qtl_threshold_chisq_mssn(
  x_var = "qtl_var", x_values = c(0.015, 0.025, 0.05),
  power = 0.8, alpha = 0.0001, tau = 0.5, pd = 0.15,
  x_upper = 5, x_lower = 5, k = 1
)
